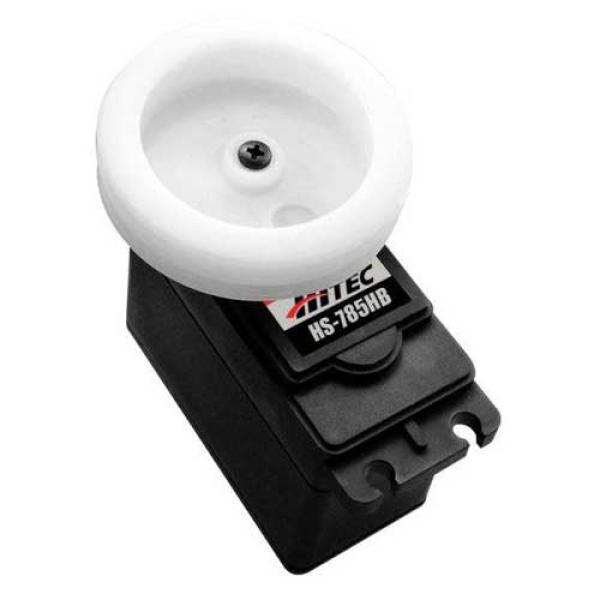

Servo Hitec HS-785 HB Segelwinde Trommel

Segelwinde
Die Lösung für die Segelsteuerung in Booten
jetzt mit Karbonite-Getrieben

Art.-Nr. 112785

Gewicht 110.00 g

Lager/Bearing 2 Kugellager/Ball Bearing

Geschwindigkeit/Speed 4,8/6V (sec/60°) 1.68/1.38

Drehmoment/Torque 4,8/6V (Ncm) 110/132

Standing Torque 4,8/6V (Ncm) 88/105

Maß/Dimension (LxBxH) 59x29x50

Gewicht/Weight (g) 110.0

Motor Eisenanker/Standard

Sonstiges/Misc staub- und spritzwassergeschützt/dust and splash water protected

Getriebe/Gear Karbonite

Control System +PULSE WIDTH CONTROL 1500usec NEUTRAL

Operating Voltage Range 4.8V TO 6.0V

Idle Current mA 8 AT STOPPED

Running Current 4,8/6V (mA/60°) 230/250

Stall Current 4,8/6V (mA) 1500/1800

Dead Band Width 5usec

Operating Travel 1.75turns/one side puls traveling 1500 to 1900usec

Direction CLOCK WISE/PULSE TRAVELING 1500 TO 1900usec

Potentiometer Type 6 SLIDER/INDIRECT DRIVE

Amplifier Type Analog Amplifier

Horn Gear Spline 24 Segments / ∅ 5.76

Splined Horns Quarter Scale/Q-I,Q-O,Q-X

Connector Wire Legth 300mm

Connector Wire Strand Counter 60EA

Connector Wire Gauge 22AWG
