Multiplex, 85067, SAFETY SWITCH 6 (UNI / MP-RC)

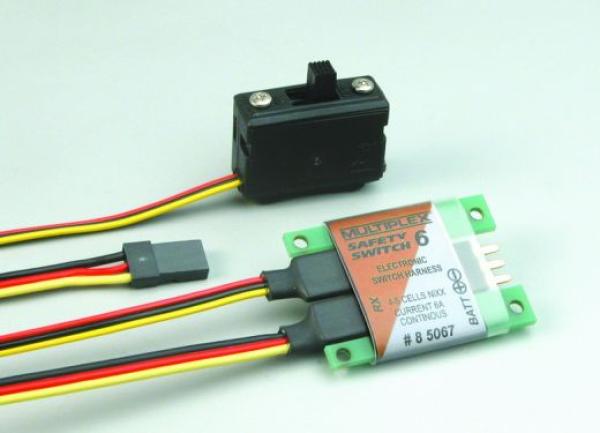

Electronic safety switch cable for the receiving system. The switch cable
is a safety- related component in the power supply chain.
Conventional switch cable with a purely mechanical switches provide example by
Aging (vibration, wear, corrosion) on the switching contacts by
a certain period of use a security risk due to failure represents.
In addition, the demands on a switch cable through the power requirement
modern high-performance servos. Many conventional, purely mechanical
Switch cables are the no match.

MULTIPLEX SAFETY SWITCH switch cables are a security-enhanced
Solution. The receiver battery (4-5 NiXX cells) is sent directly to the switch board
connected. The connection to the receiver via a direct, short,
Live circuit without mechanical switching element. The switching function
is taken over by vibration-proof and failsafe high-FETŽs.
The high-FETŽs compared to mechanical switches a
very low internal resistance. In connection with high quality gold contacts
and large cable cross sections for minimal losses to the servos their
Performance unfold properly.

When ON / OFF switching element is a conventional, mechanical slide switch.
The operational status (on / off) is easily visible. The slide switch
are only the ON / OFF switching pulse. The load current does not flow through this
Switch. It can be installed at any desired location on the model. The connecting cable
can be extended arbitrarily without hesitation if necessary. If a defect
the slide switch or its connecting cable occur, the electronics
Ensure that the last active switched state (ON / OFF) is maintained.

MULTIPLEX SAFETY SWITCH switch cables are deliberately simple and robust
built up. Only the most necessary was used in the construction to the
to keep risk as low as possible.

MULTIPLEX SAFETY SWITCH

- Small and light, suitable for many applications
- Absolutely vibration safely through modern SMD technology
- 6 or 12 A continuous load capacity
- Wear
- Gold plated, high quality connector systems and large cable cross sections

The MULTIPLEX SAFETY SWITCH 6 provided a cheap alternative to the
simple conventional switch harnesses are.

Technical specifications:
- Number of cells 4-5 cells NiXX
- Permissible continuous current max. 6 A
- Standby current 250 uA (in the OFF state)
- Receiver connector 1 x UNI
- Wire Gauge 0.33 mm2
- Length 200 mm
- Battery connector MPX MP-RC plug
- Dimensions (L x W x H) 38 x 28 x 6 mm
- Weight (with cables) 20 g
