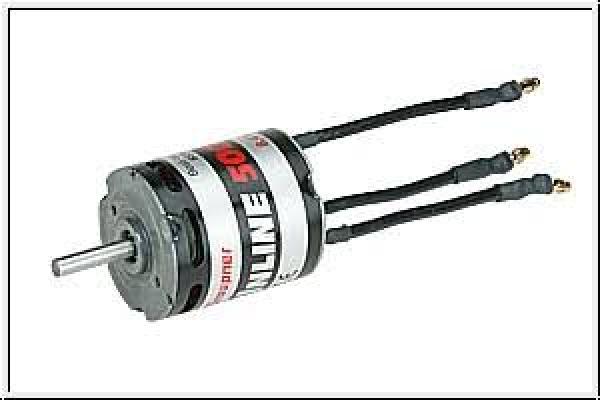

Graupner Inline 500 8,4V Motor

Graupner Inline 500 8,4V Motor

GRAUPNER INLINE 5008,4 V Graupner 6536 GRAUPNER INLINE high-performance motors.
The new GRAUPNER INLINE series of electric motors offers very high performance at relatively low price. All the motors of this series are BRUSHLESS units with the following features:
Stationary (non-rotating) motor case with cables at the rear, ensuring straightforward installation even in slim model fuselages.
Identical fixing hole pattern to SPEED 600 motors: hole spacing 25 mm, 2 x M3 threaded holes.
All-metal case with cooling slots and internal TURBO fan ensure optimum cooling in the model.
Precision-ground motor shaft, twin-ballraced.
Compact, one-piece neodymium magnets for safety at high revs.
Compatible with COMPACT CONTROL speed controllers with G 3.5 connectors.
Nominal voltage 8.4 V
Operating voltage range 7.2 ... 9.6 V
No-load speed 11,340
RPM / Volt 1350
No. of winds 4
Current drain atmaximum efficiency* 20 35 A
Max. efficiency without gearbox 80%
Permissible motor direction R and L
No. of poles 16
Overall length 72 mm
Case length excl. shaft approx. 48 mm
Diameter 40 mm
Free shaft length approx. 24 mm
Shaft diameter 5 mm
Weight approx. 240 g
* referred to stated operating voltage range
These values reflect the current state of technology, and may vary with continued development.
Variations will occur depending on the speed controller used.
